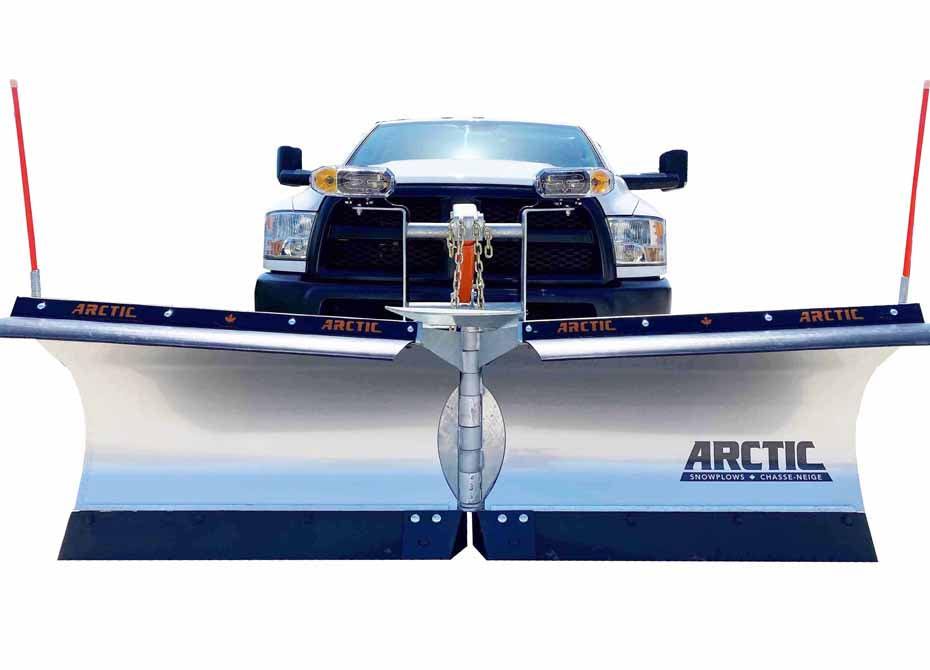

Arctic Snow Plow Flared V SS

Built for full-size vehicles and larger, the Arctic Flared V SS Plow offers the added security of trip-edge technology. Its steel cutting edge flips back and under (“trips”) when it encounters a fixed object with sufficient force, providing peace of mind when working in rugged terrain.

Key Features

• Greaseable King Pin

  • 1 3/16" x 23 1/2" greaseable pin

  • Reinforced pin housing with seven 1/2" x 5/8" wall bushings for exceptional strength

• Steel Cutting Edge

  • 1/2" x 6" high carbon steel cutting edge

  • Top hole bolt pattern for secure mounting

• Adjustable Compression Springs

  • 4 springs to compensate for uneven ground conditions

• 6” Curved Deflector

  • Rolls snow smoothly, keeping it on the blade and away from the windshield

• Laser-Cut Steel Reinforcing Ribs

  • Provide strength and durability, backing the 12-gauge stainless steel moldboard

• Quik*Link™ IV Attachment

  • Quick, spring-loaded locking system for blade, power angling, and lift frame assembly

• Hot-Dipped Galvanized Steel Frame

  • Superior resistance to abrasion, water, and rust for low maintenance

• Double Lift Chains

  • Extra lift capacity, strength, and safety
